.: Neher-McGrath Calculation Example

This page contains a sample calculation for a cross-linked polyethylene (extruded) cable
ampacity.

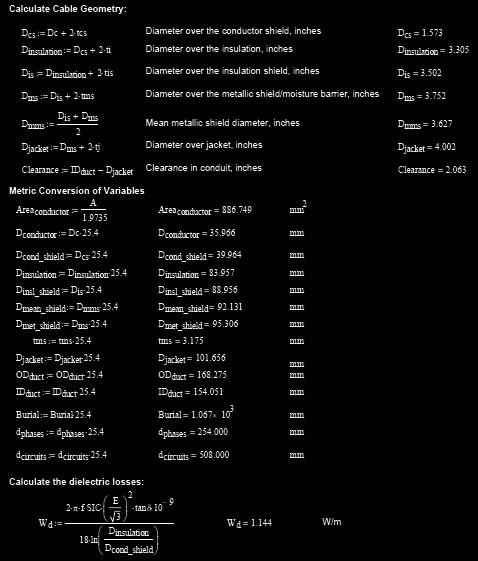

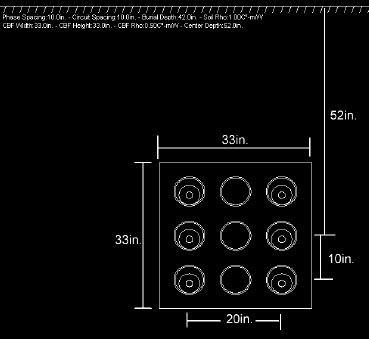

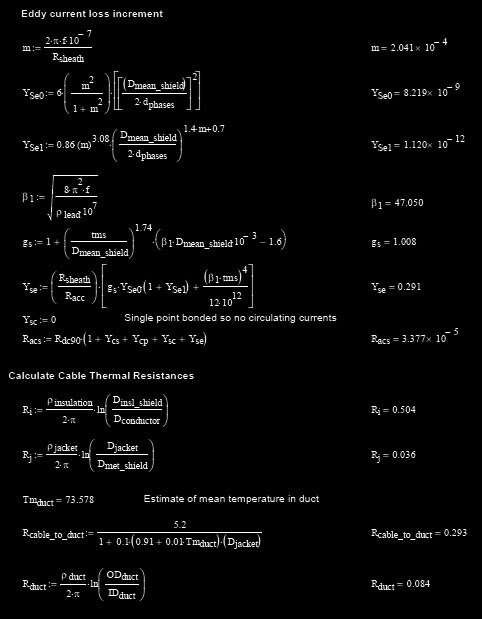

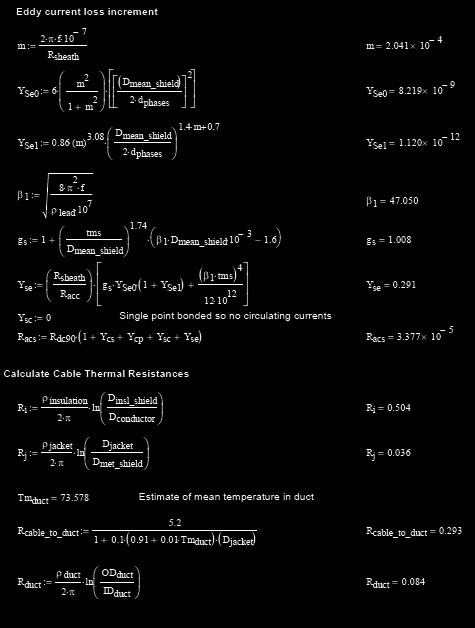

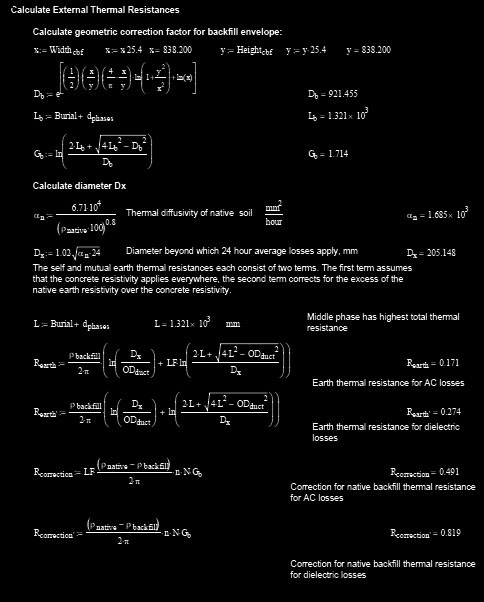

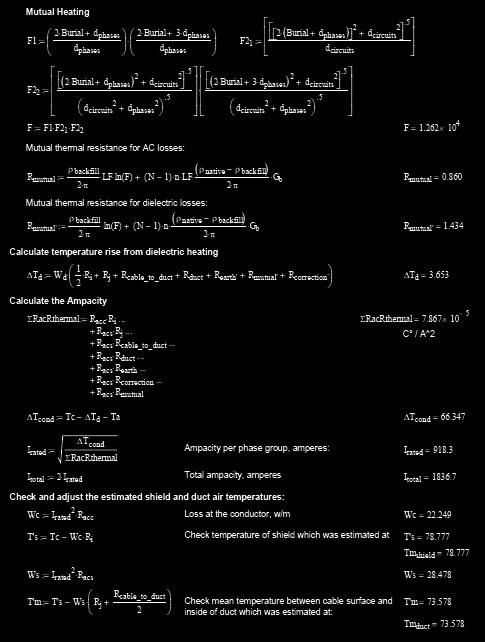

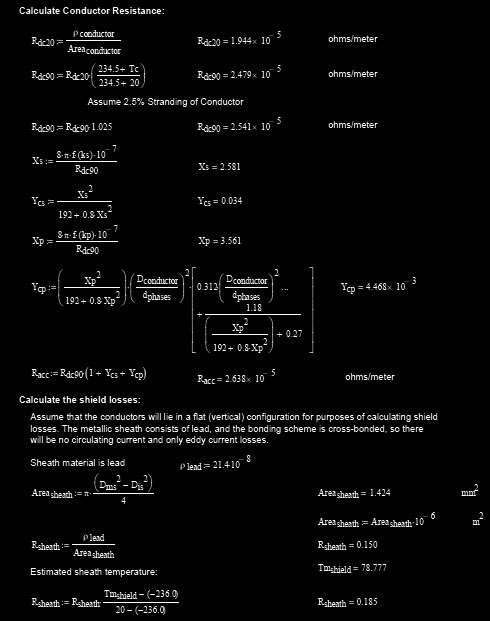

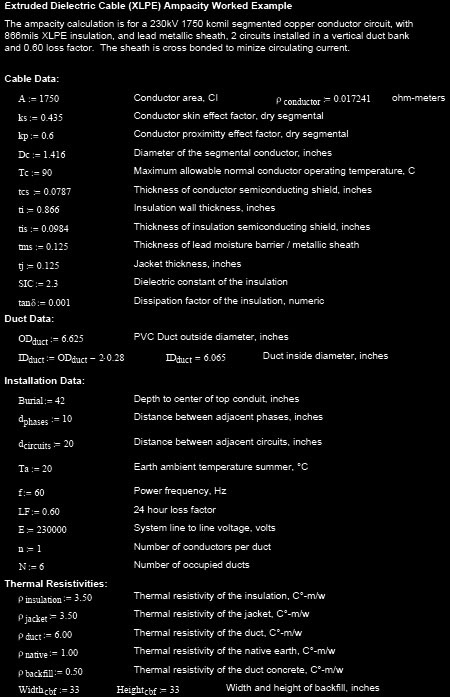

The cable configuration is as shown in the following sketch.
